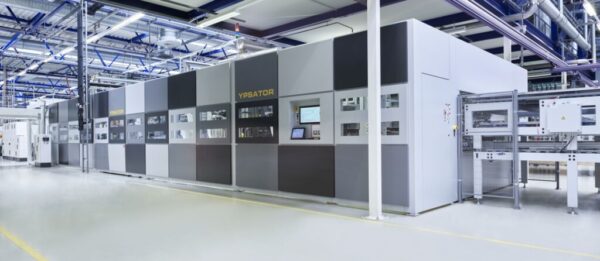

Burkle YPSATOR 2224-6 VFF PV Laminator
Second Hand Burkle YPSATOR 2224-6 VFF PV Laminator for the lamination of Glass-Backsheet and Glass-Glass PV solar modules is available in Europe.
This is a 3 stages (HotPress 1 + HotPress 2 + Cooling Press) 6 opening laminator that process 2 modules (long edge leading) per stage / opening.
Max lamination capacity is approx. 90 panels/hour – up to 400MW/year.
Useful lamination area of each plate is 2.200 x 2.400 mm.
Operating temperature: max. 180°C
Heating medium: Thermal Oil, electrically heated
Temperature accuracy on the heating plate: +/- 2 °C
Final vacuum pressure in the process room: < 1 mbar
Vacuum pump: Dry-running with silencer + Root blower (manufacturer: Busch)
PV Modules:
Length min. – max. of PV panel: 1.696 – 2.236 mm
Width min.- max. of PV panel: 1.035 – 1.131 mm
Glass panel thickness: 2 – 4 mm
