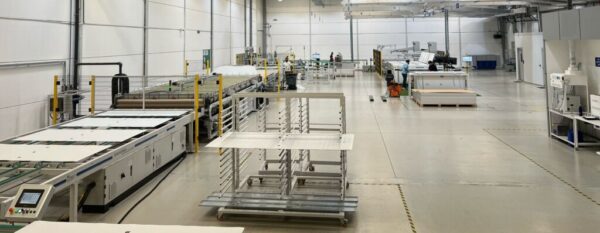

Ecoprogetti 100MW semi-auto PV modules manufacturing Line
Second-Hand 100 MW/year semi-automatic PV modules production line is available in Middle East.
Turn-key line has been delivered by Ecoprogetti in year 2023.
It produced only 15MW before machines have been unhooked and moved to storage.
Main Product:
- Type: glass-backsheet / mono facial
- PV Cells technology: PERC M10 half cut (182 x 91 mm), 10 busbars
- Size: 2.278 x 1134 z 35 mm – average 550W panel
- Format: 144 half cells, 6 x 24 PV cells matrix
List of Machines:
1x Glass Lifter & Handler to Pick up the glass;
1x EVA cutting machine ECOCUT 10 for EVA and backsheet;
1x Tabber Stringer ETS4000 equipped with kit for soldering M10 – 10BB PV cells;
1x Layup ECOLAY-UP R for strings alignment with Comau Robot;
4x inline work station for manual bussing & visual inspection;
1x buffer system to store up to 15 modules;
1x inline EL tester ECOLAB 102A with motorized loading/unloading and manual contacting, 2x Optimized NIR EL camera of 4Mpx;
1x single step PV laminator ECOLAM MAX5 to laminate 5 modules/cycle;
1x manual trimming station;

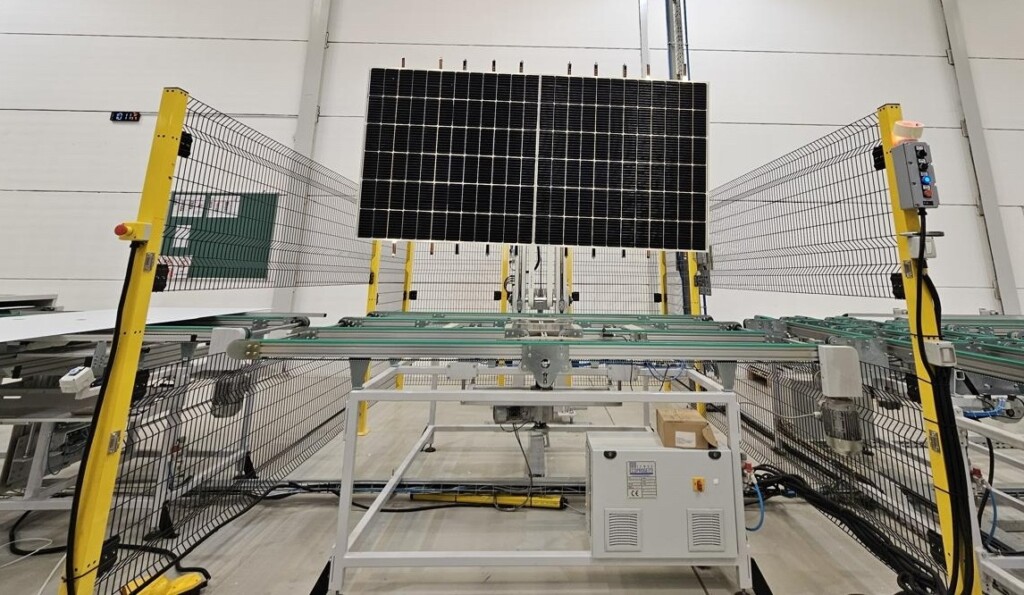

1x 90° Flipping & Inspection station;
1x automatic inline framing machine Ecoframe HA suitable for silicone framing;
1x automatic silicon dispensing station Ecosil 14;
1x LED Sun Simulator Ecosun Plus A with range of intensity: 200W/m2 – 1200W/m2;
1x inline EL tester ECOLAB 103A;
1x inline Hi Pot tester Eco Hi-Pot;
1x Ribbon Cutting machine ECOCUT 01;
1x Cell Tester – Ecosun Cell;
1x Kit of Lab Equipment: Gel content Tester, Peel Tester;
1x Fiber laser scriber ECOLAS;
| Machine Type | |
|---|---|
| Manufacturer | |
| Vintage | 2022 |
| Location | Middle East |
