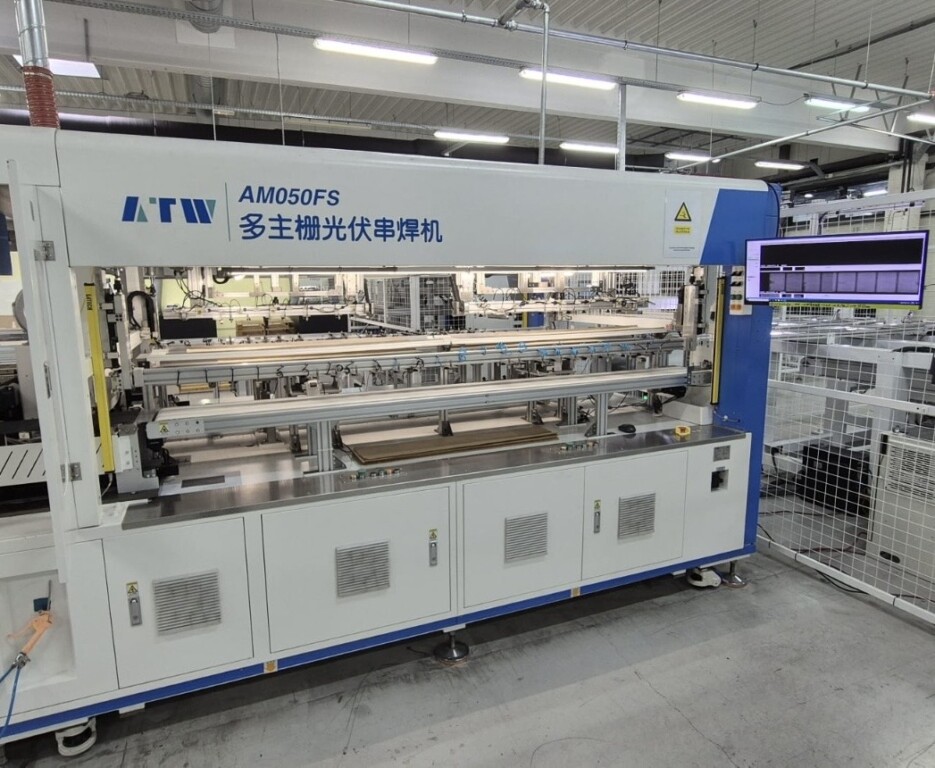

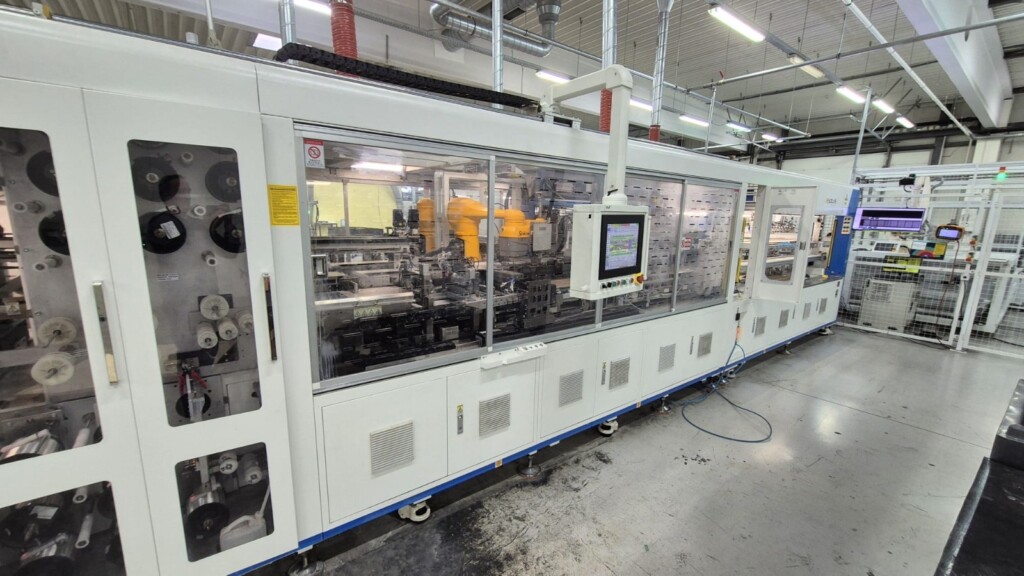

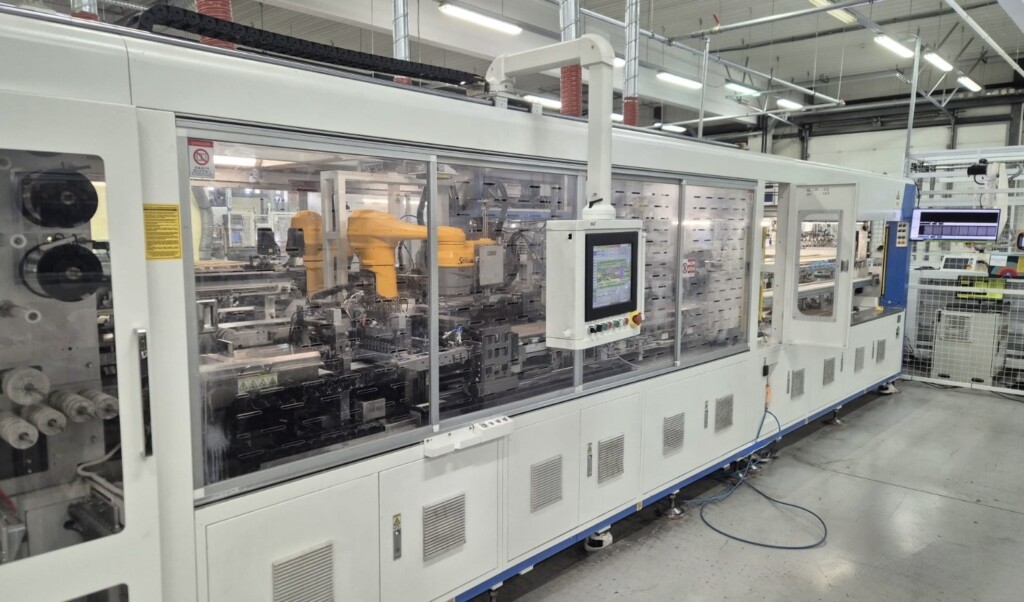

ATW AM050FS PV stringer

Second Hand fully automatic AM050F MBB PV Cell Soldering Stringer manufactured by ATW – Wuxi Autowell Technology is available with kit M10 (M10+) 10BB.

Optional M10 16BB and G12R tooling is available at extra cost.

Optional G12 tooling is not available.

Nominal speed 6.600 pcs/hour, it includes CCD-based defect detection system.

The stringer uses an infrared soldering technology, with controlled pre-heating and adjustable soldering parameters through HMI.

Machine is still operational in production.

Key Technical Details:

• Capacity: up to 6.600 pcs/hour depending on soldering process and cell configuration
• Cell compatibility: 156–230 mm crystalline silicon cells, half-cut and upgradeable 1/3-cut configuration
• Power supply: 380V, 50Hz, three-phase
• Power consumption: Average 40 kW; Peak 50 kW
• Air supply pressure: 0.6–0.8 MPa
• Air consumption: ≥2.400 L/min
• Required installation space: approx. 9.950 × 3.500 × 2.650 mm
• Weight: approx. 13.500 kg
