Lab Scale REOO PV modules manufacturing Line

Brand-New Lab Scale (5-10MW/year) semi-automatic PV module production line supplied by REOO in 2026 is available in Africa.

List of Equipment:

• Tabber & Stringer machine: single-track automatic, suitable for 5BB / 6BB / 9BB / 12BB / 16BB / 20BB PV cells of size 182 mm and 210 mm half-cut;
• IV Tester;
• EL Tester;
• Layup Equipment;
• EVA / Backsheet cutting table;
• Trimming Conveyor;
• Junction Box soldering Conveyor;
• Framer gluing Machine;
• Soldering Station;
• Tape Cutter;
• Air Compressor;

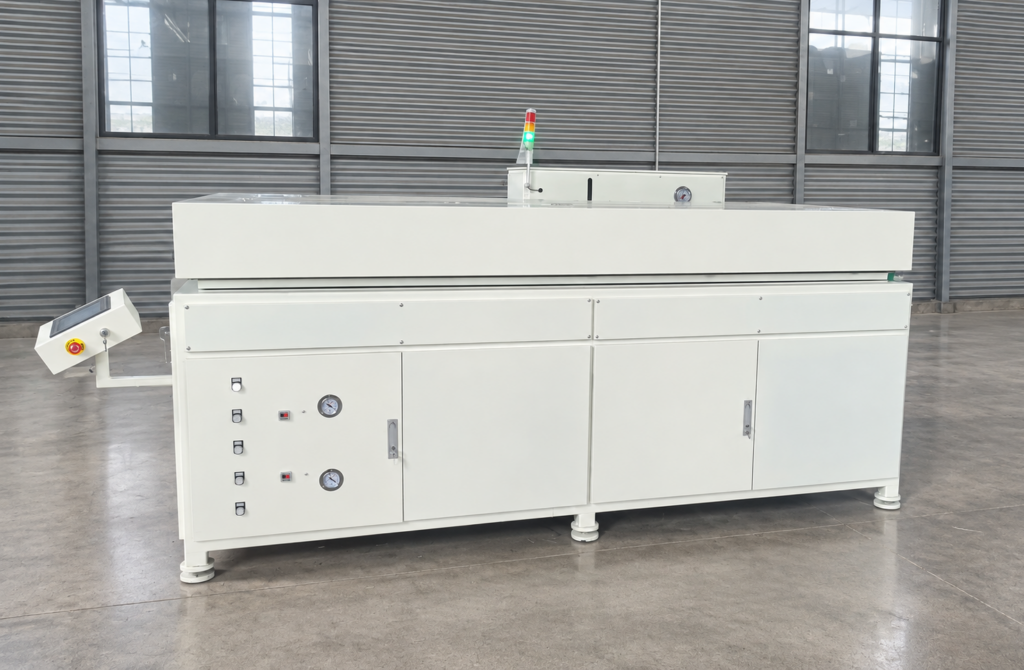

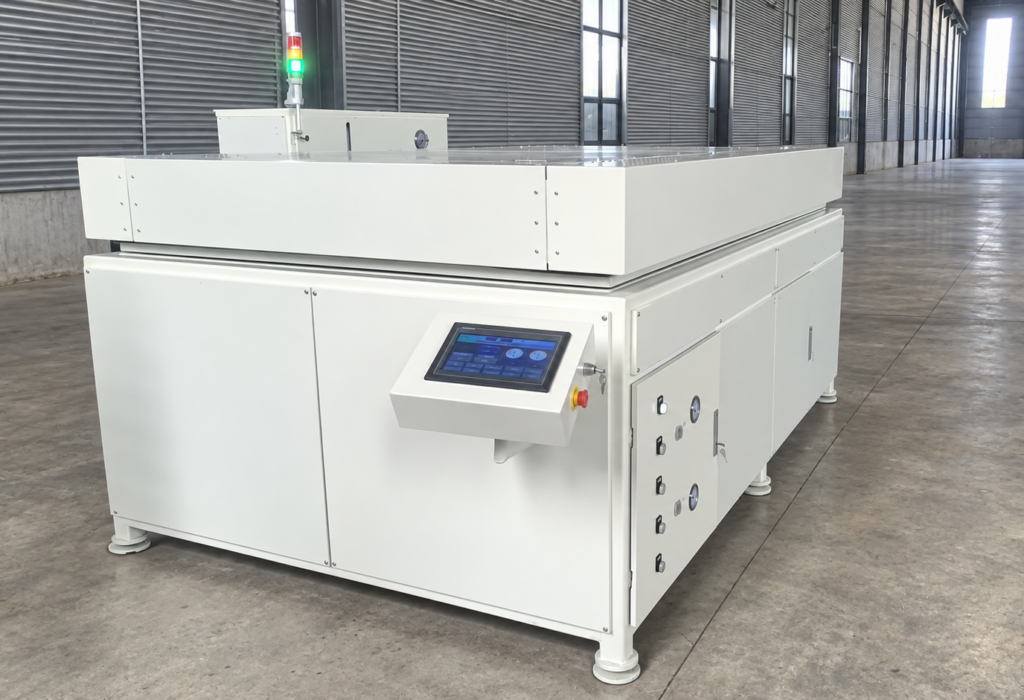

• PV Laminator with laminating area of 2.500mm x 1.400mm, power consumption: 28 kW, oil heating, manual loading/unloading;
• Ribbon Cutting machine;
• Framer Gluing machine;

A 40″ High Cube Container with Raw Materials is available. It includes: PV Cells, PV glass, Aluminum Frames, EVA Film, Backsheet, Soldering Ribbon, Junction box.

Further technical information, original equipment specifications, layout and commercial conditions are available upon request.
