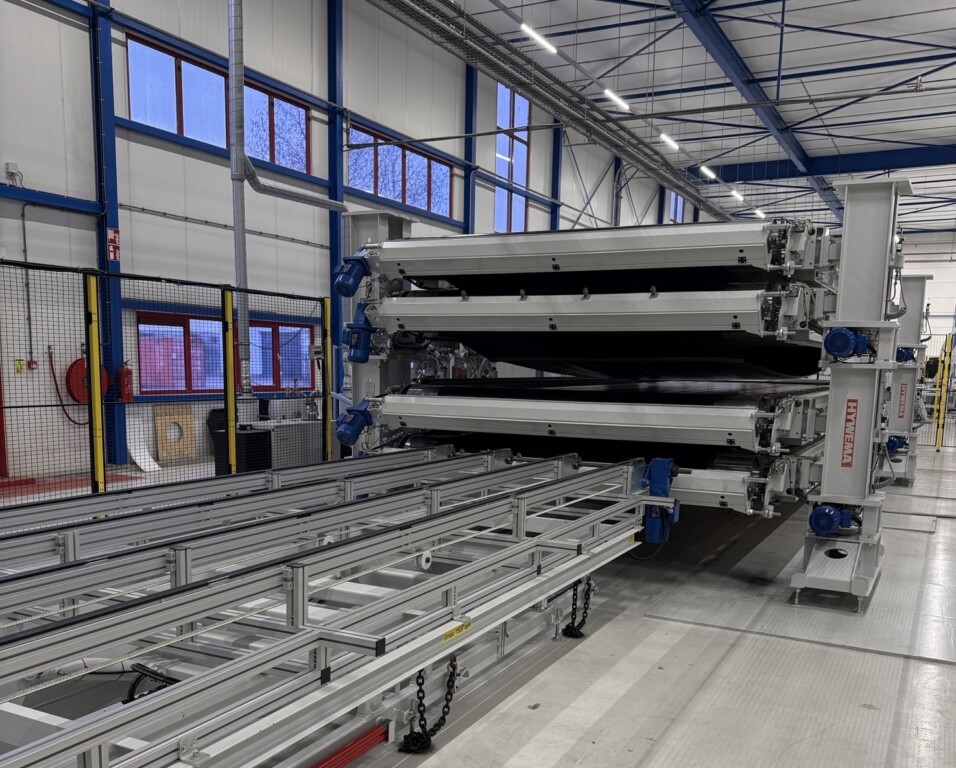

SM Innotech Incapcell 2-62-22 PV laminator

Experia Solution offers a second-hand PV laminator, model SM InnoTech IncapCell 2-62-22.

Laminator is made in Germany and it is a “single chamber, double floor, double heating” model, suitable for production of glass-glass, glass-foil and flexible light PV modules.

PV modules can be encapsulated with EVA, PVB, TPU, TPO, Silicone, Ionomers.

Main Technical Info

• Installed power: 360 kW
• Vacuum pumps installed: Oerlikon Leybold Sogevac SP630 and SV120B
• Dimension:
  • Length: 9.100 mm
  • Width: 4.600 mm
  • Height (both chambers): 2.900 mm
• Infeed height: approx. 950 mm (lifter for loading / unloading operation is available)
• Operating Panel: Siemens
• Max processable format up to 6.200 mm length and 2.600 mm width
• No Pin System
• Overall length of laminator (including loading / unloading conveyors): 21,7 m
